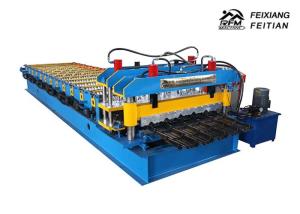

Galvanized Steel Glazed Tile Roll Forming Machine FX950 For Building Material

Brand Name : Feixiang

Model Number : FX950

Certification : CE BV ISO

Place of Origin : China

MOQ : 1set

Price : Please check with the supplier

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 30 sets per week

Delivery Time : 15 days

Packaging Details : Nude packing,but we can also packing according the customer requirements

Machine name : PLC Control Glazed Tile Roll Forming Machine FX950 For Building Material

size : 6000*1350*1250mm

Weight : 4.2tons

Control : PLC computer with different language

Speed : 2-5m/min

Material : GI,PPGI.AL

Contact Now

PLC Control Glazed Tile Roll Forming Machine FX950 For Building Material

Our products are exported to more than 25 countries and has gained reputation for quality, finishing, durability, reasonable price, after sales service etc.
We are confident that based on our knowhow on the manufacture of machinery when there is demand from our customers, we are sure you can feel our differentiated technology and satisfaction, being different from other existing companies.

1. Main Material used

Material: Color steel , galvanized steel or Aluminum

Feeding width:1000mm

Material thickness:0.3-0.6mm

Yield strength:235-450mpa

2. Machine details

Brand: Feixiang

Model number: FX950

Voltage requirement: 380v60hz3p

Working speed:2-4m/min

3. Machine composition

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main Machine for roll forming	set	1
3	Control System(PLC)	set	1
4	Pressing System	set	1
5	Cutting System	set	1
6	Output Table	set	1

4. Main parameters

Main parameters of PLC Control Glazed Tile Roll Forming Machine FX950 For Building Material
1	Length of the main part	about 600013501250mm
2	Weight of main part	4.2Tons
3	Voltage	380V/50HZ 3Phase
4	Roller fixer	middle plate
5	Frame	400H steel
6	Drive mode	chain
7	Material of rollers	45#steel, surface hard chromium plating
8	Material of shafts	45#steel
9	Diameter of shafts	φ 80mm
10	Number of rollers	13 rollers
11	Main power	5.5kw
12	Material of mould	Cr12 quenched
13	Power supply	hydraulic power

Galvanized Steel Glazed Tile Roll Forming Machine FX950 For Building Material
